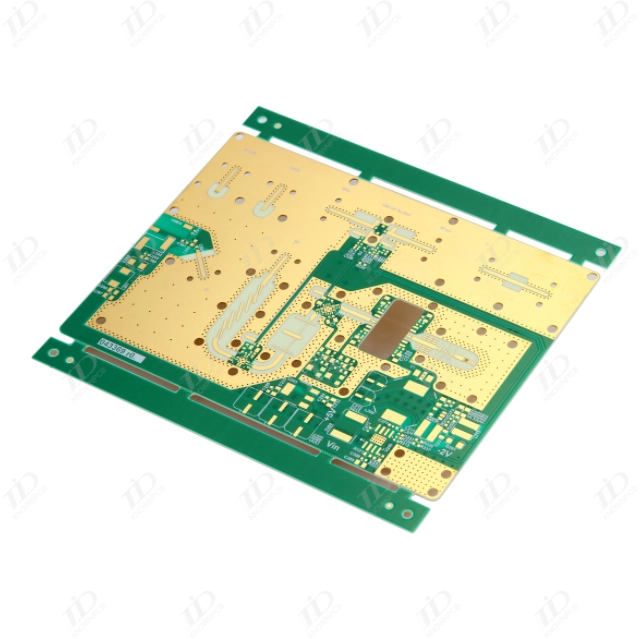

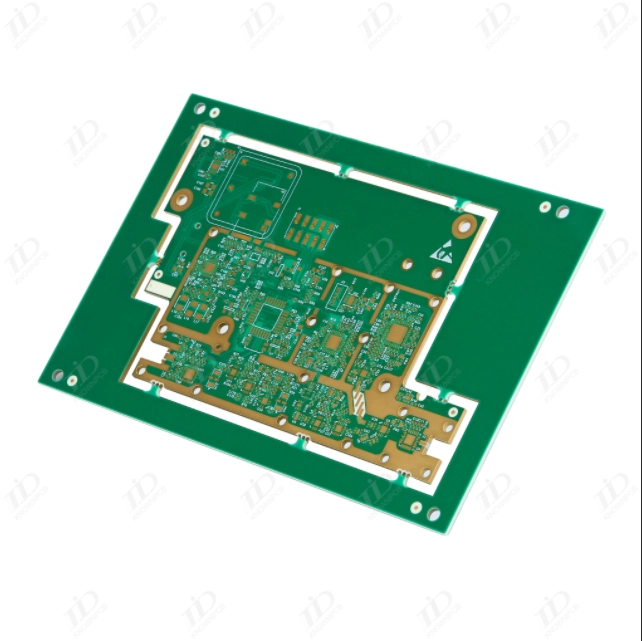

High Frequency Board Advantages

What are the advantages of High Frequency Board?

With the rapid advancement of electronic communication technology, the demand for high frequency circuit boards in communication equipment has significantly increased to support high-speed and high-frequency signal transmission. High frequency boards utilize dielectric materials that exhibit exceptional electrical properties and outstanding chemical stability.

High Frequency Board
Key Performance Characteristics of HF PCB	• Precision impedance control (Zo) – Ensures signal integrity and minimal reflection • Superior thermal stability (Tg) – Maintains performance under high-temperature conditions • Low signal transmission loss – Enhances signal fidelity over long distances • Minimal signal delay and distortion – Supports high-speed data transmission with accuracy • Low dielectric constant (Dk) and dissipation factor (Df) – Reduces signal attenuation and energy loss
Application Area of HF PCB	Aerospace, Wireless antennas, Base station receiving antennas, Power amplifiers, Radar systems, Navigation systems, Other advanced communication equipment

High Frequency Board

Key Performance Characteristics of HF PCB

• Precision impedance control (Zo) – Ensures signal integrity and minimal reflection

• Superior thermal stability (Tg) – Maintains performance under high-temperature conditions

• Low signal transmission loss – Enhances signal fidelity over long distances

• Minimal signal delay and distortion – Supports high-speed data transmission with accuracy

• Low dielectric constant (Dk) and dissipation factor (Df) – Reduces signal attenuation and energy loss

Application Area of HF PCB

Aerospace, Wireless antennas, Base station receiving antennas, Power amplifiers, Radar systems, Navigation systems, Other advanced communication equipment
