SMT Reference Board with Specialized PCB Fabrication

Specialized SMT Reference Board
	Base Material	S1000H
	Layers	2
	Dimensions	114*111
	PCB Thickness	1.6mm
	Board Solder Mask Color	Purple
	Silkscreen	White
	Surface Finish	ENIG 2U
	Special Technics	Purple solder mask

View more Product Line | View more Project Solution

Specialized PCB Fabrication and Custom PCB Process Service

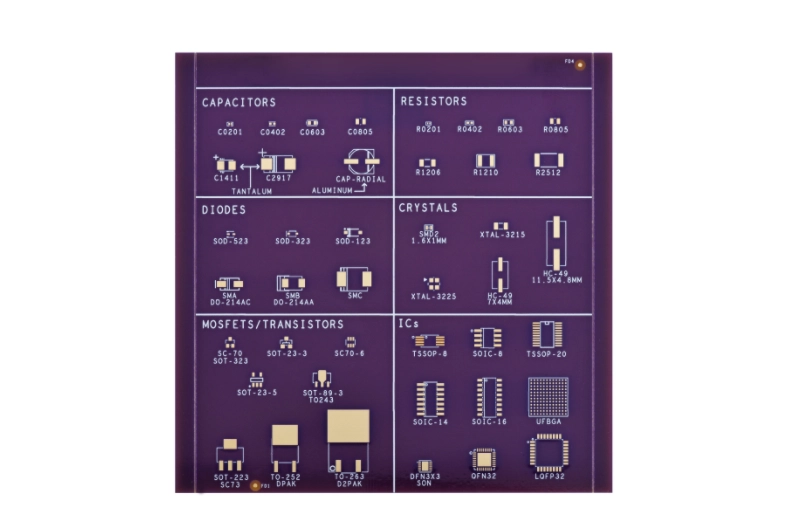

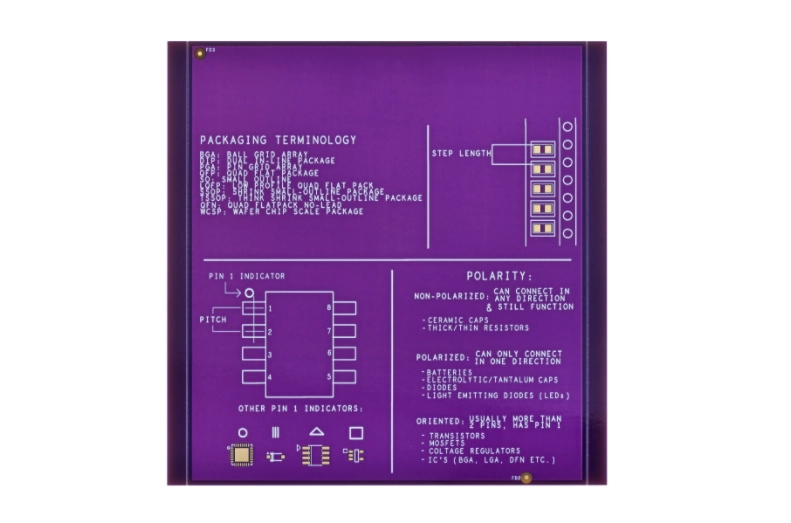

A specialized board for practical SMT reference using with component footprint visualization, PCB layout reference, and assembly training. It clearly presents a wide range of SMD package types, polarity indicators, and pin identification methods, making it suitable for engineering validation, educational use, and assembly process verification.

Beyond its reference function, this printed circuit board also demonstrates capabilities of KnownPCB in Custom PCB Process Service and Specialized PCB Fabrication. From custom solder mask colors to precise silkscreen definition and ENIG surface finishing, each detail reflects controlled manufacturing processes and consistent quality standards. Our PCB manufacturing capacity supports fine-pitch components and clear marking, ensuring both usability and visual clarity.

For customers whi working on prototypes or small-batch projects, KnownPCB provide flexible Low-Volume PCB Production combined with reliable PCBA assembly services. Whether for training boards, evaluation kits, or custom electronic products, we support a seamless transition with DFM support from quick-turn PCB fabrication to box build assembly, helping reduce development time and improve production efficiency.
