Industrial High-frequency Printed Circuit Board
	Base Material	Roger RT/duroid 6006
	Layers	2
	Dimensions	180*61
	PCB Thickness	1.0mm
	Board Solder Mask Color	-
	Silkscreen	-
	Surface Finish	Immersion Silver
	Special Technics	Solder Mask Free Metallized Surface, High-Frequency & Precision Impedance-Controlled Traces, UL 94V-0 High Flame-Retardant Base Material, Via Arrays & Tooling Holes

View more Product Line | View more Project Solution

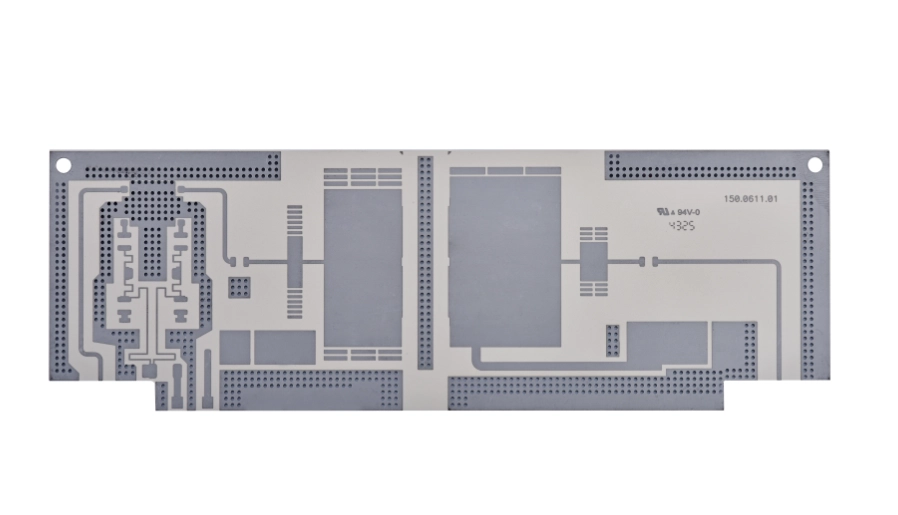

For demanding RF and signal-integrity applications, This industrial high-frequency PCBs is fabricated through high-tech industrial PCB manufacturing, which is using a 2-layer Rogers RT/duroid 6006 substrate with immersion silver surface finish.

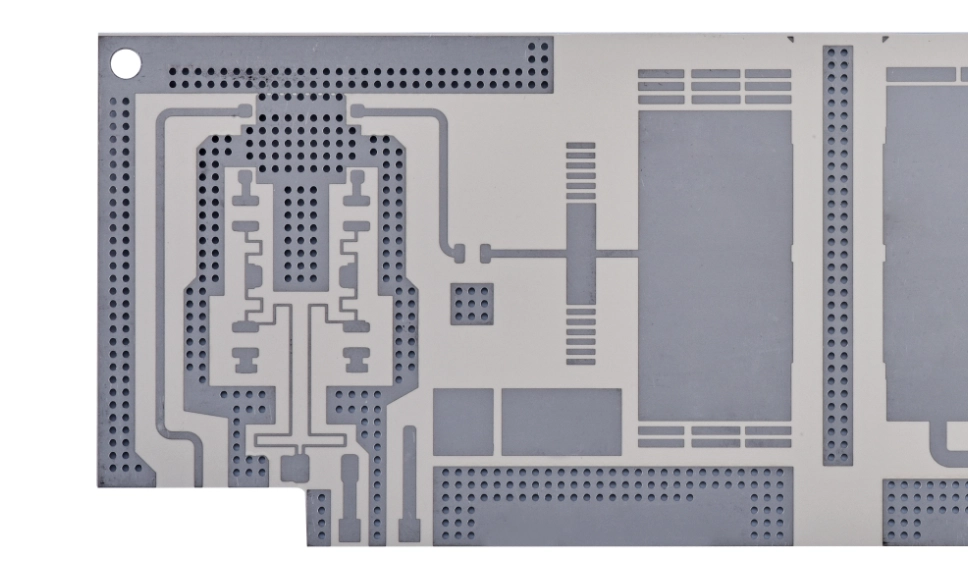

A soldermask-free exposed metallized copper design ensures optimal high-frequency performance, with strict anti-oxidation and ESD protection applied during blank PCB manufacturing to prevent contact failure or component damage. The layout of circuit board features high-frequency precision impedance traces, large ground copper areas and controlled routing, with tight tolerance control of PCB trace width, spacing and copper thickness to maintain unbroken signal integrity.

The UL 94V-0 flame-retardant substrate delivers exceptional thermal stability during high-temperature lamination and soldering, avoiding PCB delamination, blistering or reduced flame resistance. Its multiple via arrays and Tooling holes also require precise drilling, smooth hole walls and reliable deburring for consistent electrical performance.

Purpose-built for RF and industrial electronics, these advanced bare PCBs support reliable high-frequency operation across communication, measurement and industrial control equipment.

KnownPCB’s full-service capabilities cover qualified and high quality industrial PCB manufacturing, surface mount PCB solutions, and complete PCB box build assembly services, all built to meet the strict requirements of your high-reliability and manufacturability industrial products.
