Metal Core PCB Prototype service for Industrial sensors, Motor controllers, Power supplies

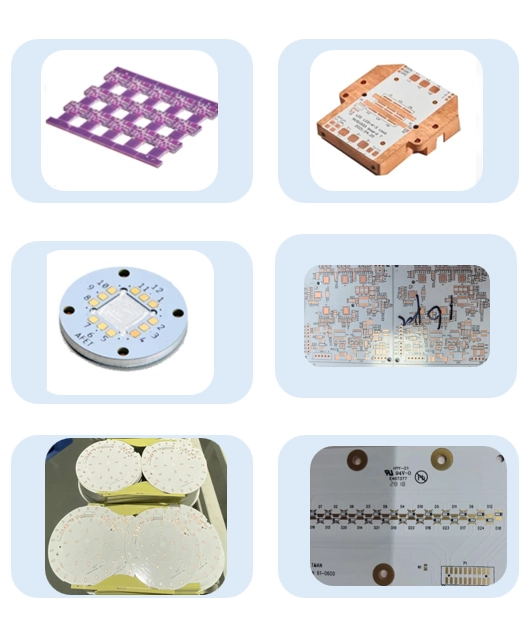

These are the industrial PCB cases recently produced by KnownPCB.

Learn more about metal core PCB capability

Metal core PCB are widely used in many industrial applications, such as industrial sensors, Motor controllers and power supplies.

The PCBs of the equipment required excellent performance in thermal management (heat dissipation), mechanical durability and built-in EMI Protection for LEDs, IGBT modules, PDUs etc.

High resistance to bending and vibration ensures the mechanical stability of industrial equipment.

The metal core boards (IMS PCBs) for high-current industrial devices are made of aluminum or copper materials; the manufacturing tech involved sink-pad and forming solutions (V-cutting,routing) .

From design to fabrication, there are a lot factors should be taken into consideration to maintain a balance between cost and efficiency.

PCB Parameter : Aluminum PCB Specification Brand : KnownPCB Product Category: PCB / PCBA Base Material : Aluminum / FR4 Reinforcement Material： Woven Glass Fabric (Glass Fiber Cloth) Insulation Material： Fiberglass Layer Count： 1-32 Layers Board Thickness： 0.4 - 3.0mm Min. Trace Width/Spacing： 4/4 mil Min. Hole Diameter： 0.2mm (Min. Drill Size) Surface Finish： OSP / ENIG (Immersion Gold) / HASL Special Processes： Blind & Buried Vias
