The FR4 industrial control pc board is processed with hard gold 15U" surface finish, countersink and Z-axis milling for the excellence mechanical strength with enhanced board thickness. Utilizing a hard gold surface finish on the industrial PCB, that is the ideal solution for the environments demanding super-reliability, insertion durability and tight-tolerance assembly. PCB Material FR4 features FR4 as a common material of PCB, that with the following features: Stable insulation performance Superior Mechanical Strength Cost-effective It is an ideal choice for the purpose of industrial control, power modules, interface boards and signal control systems.

Why is an ideal PCB solution for Industrial application?

Overview of the industrial PCB board:

 PCB Dimension: 247 × 117 mm, thickness 2.0 mm

The advantages of the Industrial PCB board with streamlined structure are performed excellently at cost and processing to provide stability manufacturability and serviceability.

This is a larger industrial printed circuit board with 247 × 117 mm dimension and 2.0mm dimension with the following features:

1. Allows for the extensive integration of connectors, terminals and power devices.

2. PCB manufacturing : Requirements on the precise control over panelization, reflow support, and fixturing to reduce the warpage risk.

3. The PCB with 2.0 thickness is unnormal that realized the enhanced mechanical strength, warpage & resistance for the heavy-componet applications.

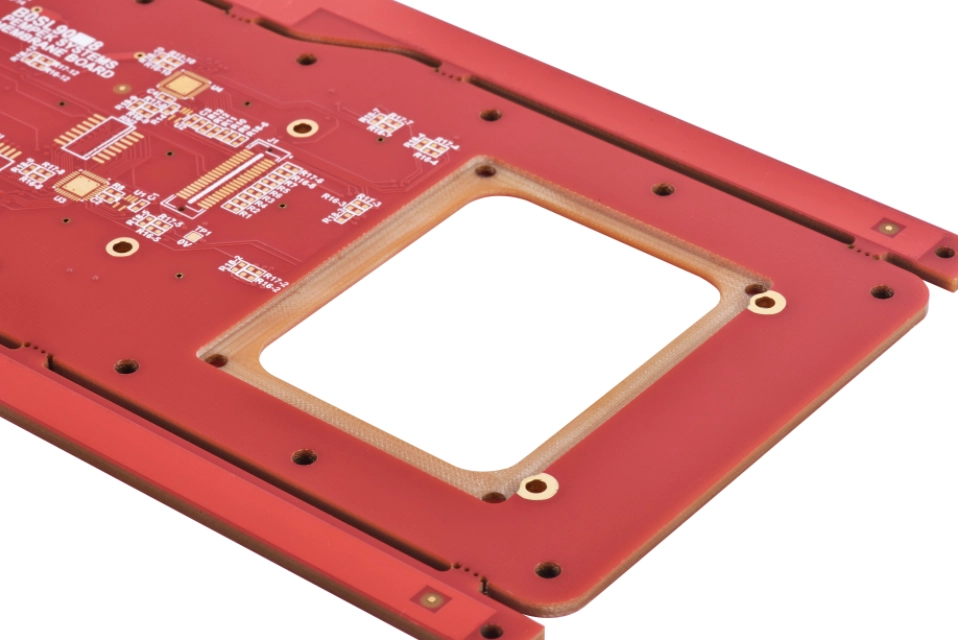

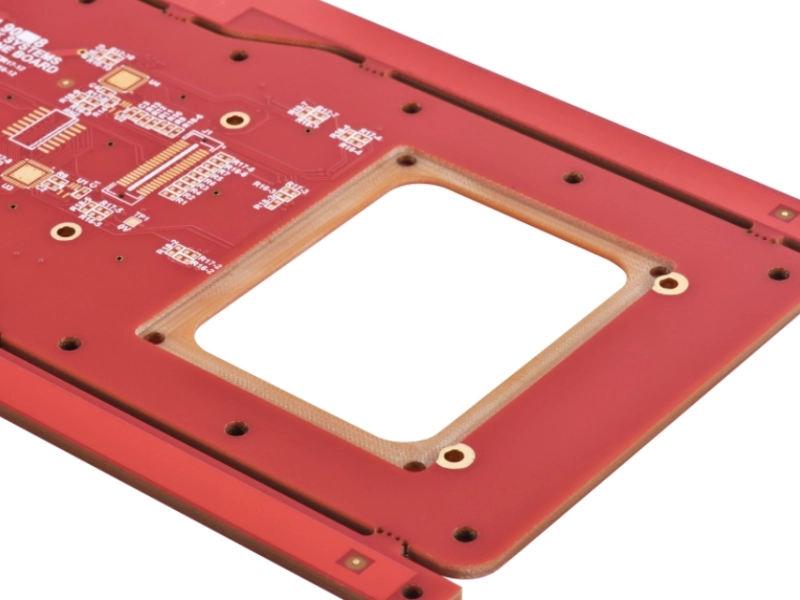

The red surface mask is a purpose for the following industry standard & Functional:

1. A strategic choice for visual differentiation

2. Streamlines the assembly and repair processes by making labels and markers stand out.

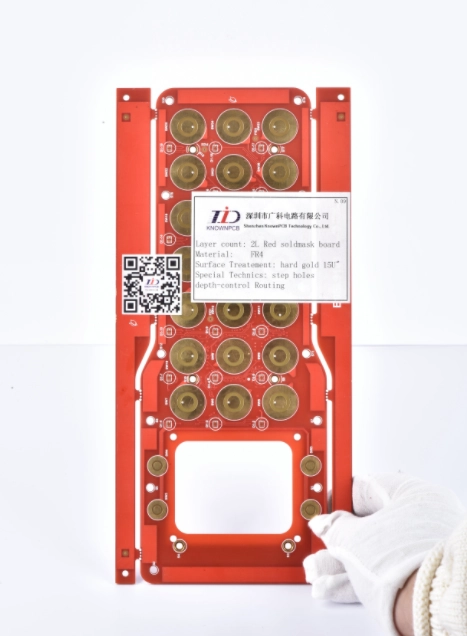

The 15U" Hard Gold plating is a critical specification that ensures consistent electrical performance and a robust contact interface over the product's lifespan.

The specification of the industrial PCB board defines a heavy-duty industrial control board for the applications with superior contact reliability and long-life in demanding environments.
